Flexible 5.1-Channel Home Cinema
The HT-R538 provides amplification for a complete 5.1-channel loudspeaker system, including front, centre, surround and powered-subwoofer connections. Its published output is rated at 100 watts per channel into 6 ohms, providing sufficient power for a wide range of compatible home-cinema speakers.

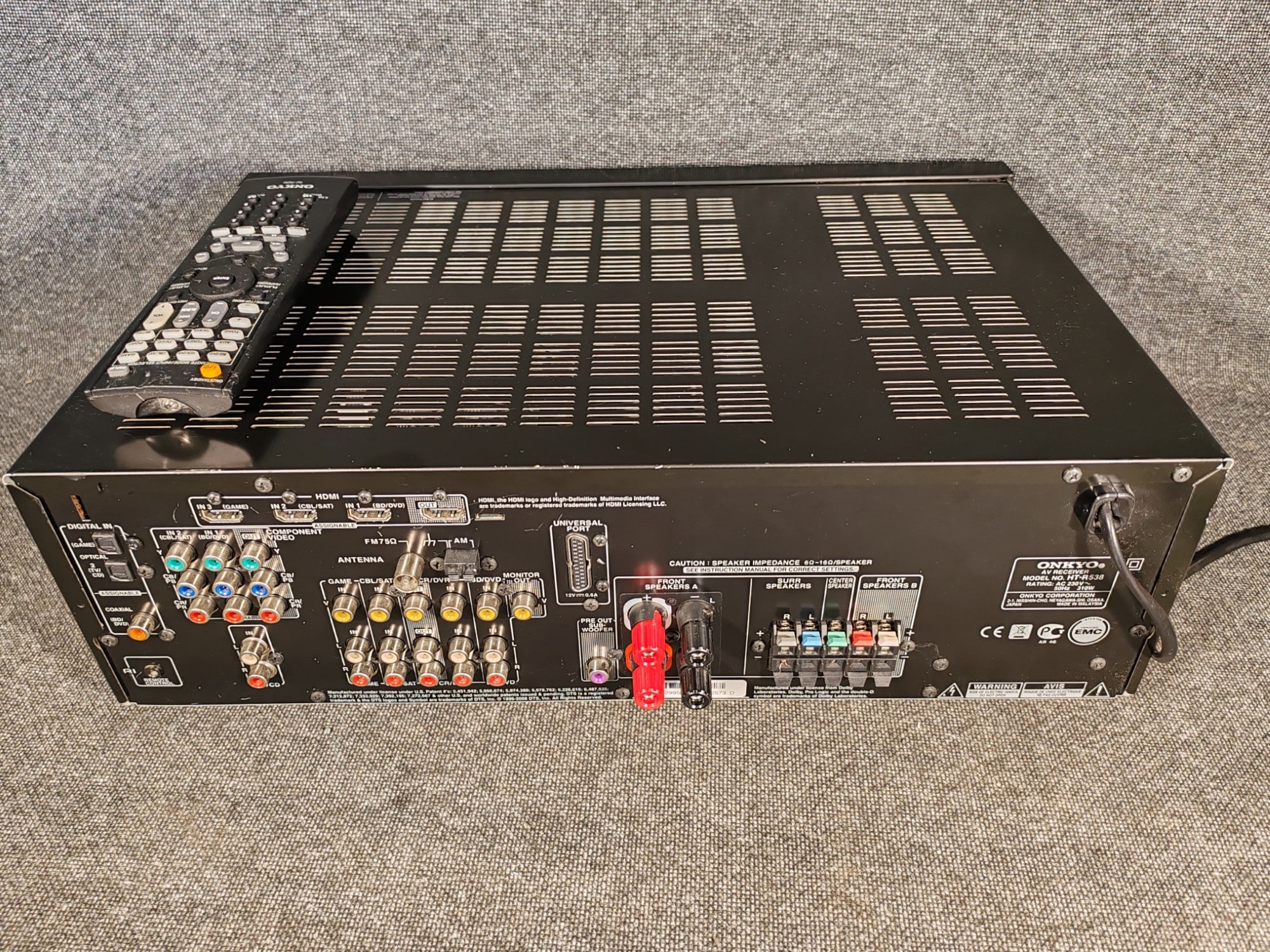

Three HDMI inputs allow several source components to be connected, with a single HDMI output carrying the selected source to a television or projector. The receiver supports 1080p video, 3D pass-through and the original HDMI Audio Return Channel standard.
Dolby TrueHD and DTS-HD Master Audio decoding allow compatible Blu-ray players and other sources to deliver lossless multichannel sound. Optical and coaxial digital inputs are also provided for televisions, CD players and older digital equipment.
Component and composite video connections make the receiver particularly useful for systems containing legacy equipment. An FM/MW tuner, front auxiliary input and headphone socket add further everyday flexibility.
Technical Specifications
- Type: 5.1-channel AV receiver
- Rated output: 100 watts per channel into 6 ohms
- Frequency response: 20Hz–50kHz
- Total harmonic distortion: 0.08%
- Damping factor: 60
- Recommended speaker impedance: 6–16 ohms
- Surround formats: Dolby TrueHD and DTS-HD Master Audio
- HDMI connections: Three inputs and one output
- HDMI features: 1080p support, 3D pass-through, ARC, CEC, Deep Color and LipSync
- Digital audio inputs: Two optical and one coaxial
- Component video: Two inputs and one output
- Additional video connectivity: Composite video
- Radio tuner: FM/MW with 40 station presets
- Front connections: Auxiliary line input and headphone socket
- Dimensions: 435 × 151.5 × 328.5mm
- Weight: Approximately 8kg
- Power consumption: 310 watts
- Standby consumption: Approximately 0.3 watts
- Year introduced: 2010
Important Owner’s Notes
This is a 2010-generation home-cinema receiver intended primarily for 1080p and legacy AV systems. It does not provide modern 4K/HDR video pass-through, eARC, Bluetooth, Wi-Fi or integrated network streaming. Modern video sources can instead be connected directly to a compatible television, with audio returned separately where appropriate.
The HDMI return connection supports the original ARC system rather than the newer eARC format. Compatibility will therefore depend on the television and audio formats being used.
There is no dedicated turntable input, so a conventional record player will require a separate phono stage unless it has one built in.
Why Buy From Us?
With more than 40 years of experience in hi-fi, we take care to describe our used equipment clearly and honestly. Unlike many private or eBay sellers, we check our equipment before sale and remain available by telephone or email should you need assistance.
This receiver includes our three-month guarantee and will be securely packaged for delivery. We aim to offer competitive pricing without compromising on customer support or the quality of our descriptions.
Summary

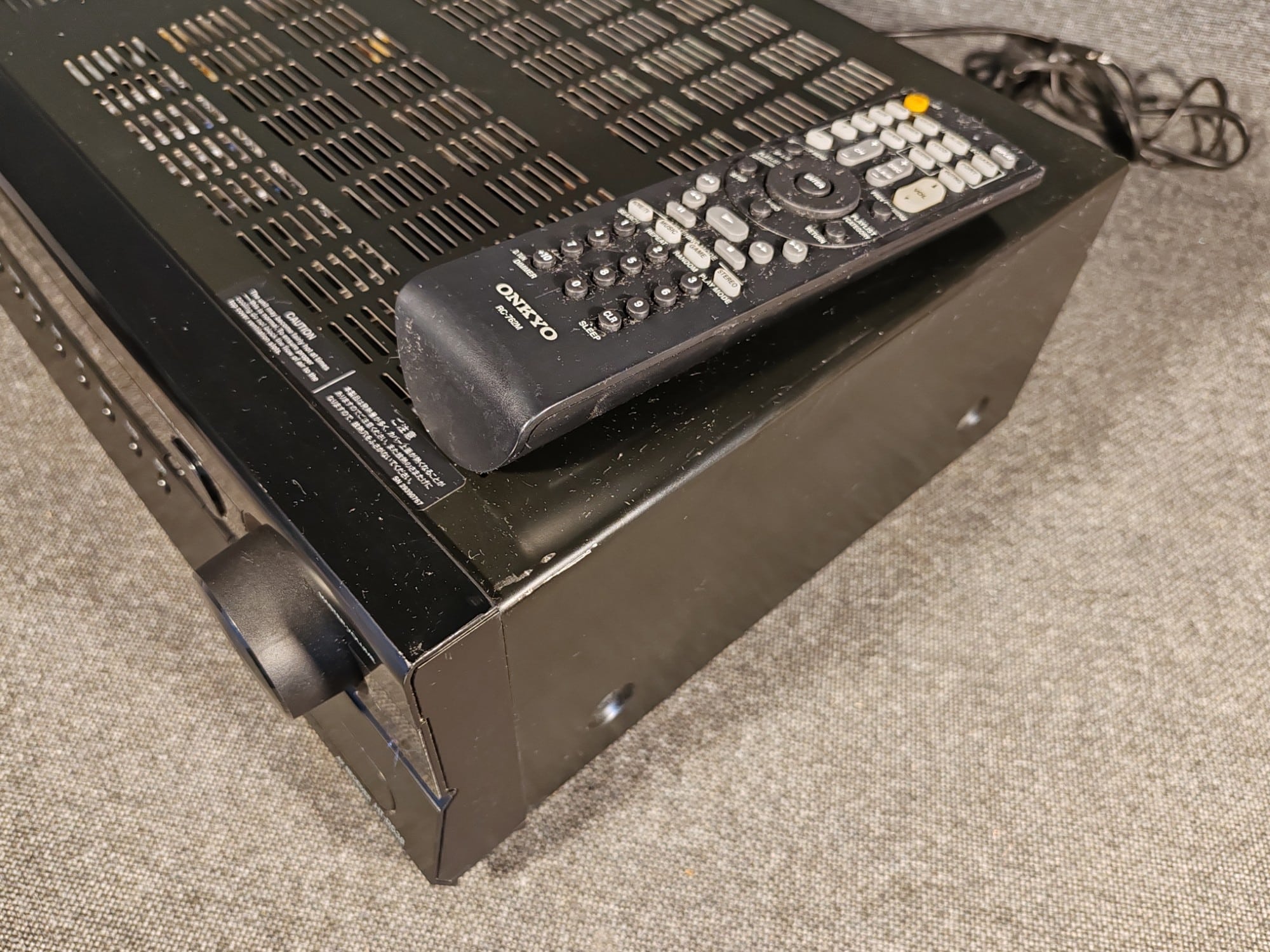

A well-equipped Onkyo 5.1-channel AV receiver in A2 condition, showing only minor cosmetic marks. With HDMI connectivity, lossless surround-sound decoding, useful legacy connections and a supplied remote control, it is an excellent basis for a traditional 1080p home-cinema system.
