Description

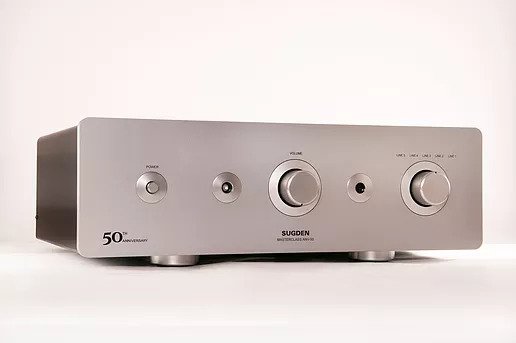

The Masterclass ANV-50 is a new integrated amplifier released to celebrate Sugden Audio’s fiftieth anniversary.It is a unique design with many innovative features and specially developed audio circuits.
In 1967 Sugden released the world’s first solid state pure class A amplifier, the A21. The ANV-50 promises to revisit this golden age of British audio engineering, with a design focused on the demands and preferences of today’s audio enthusiast and music lover.
The ANV-50 has at its heart, a pure class A amplifier and this is coupled to an advanced ‘ideal’ final output stage. This unique two stage amplification system guarantees our signature pure class A sound, with the ability to drive the vast majority of loudspeaker systems.
Facilities
Inputs Five line level operated by relays

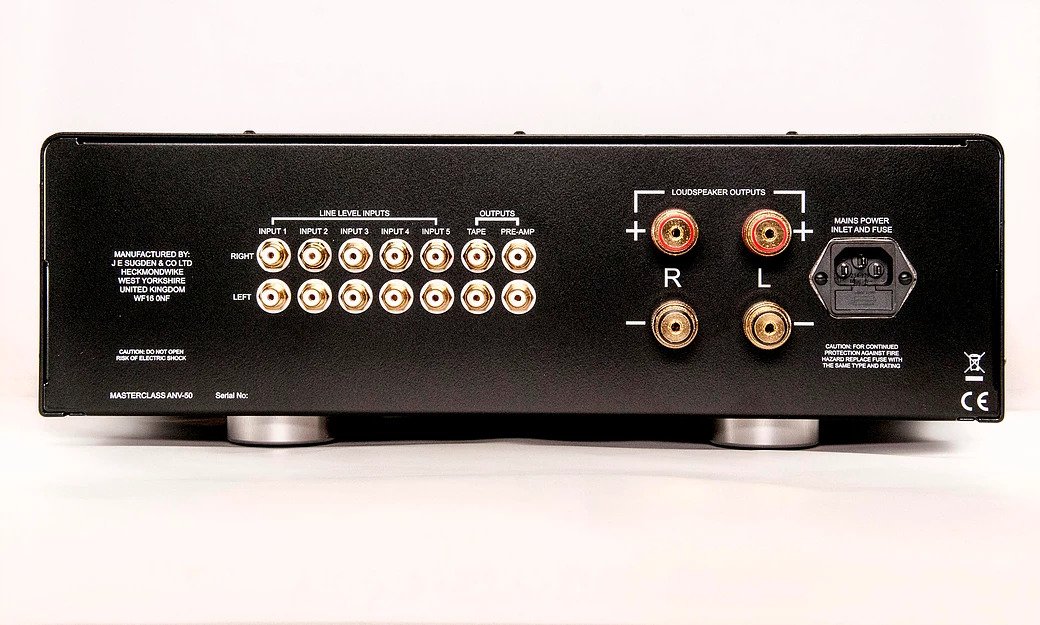

Outputs One pre-out (variable), one tape out, one pair of stereo multi-way binding posts
Volume Control Remote control (RC5 handset included)
Specifications
Line Input Sensitivity 110mV @ zero attenuation for full output
Power Output 50 Watts into 8 Ohms both channels working, 100 Watts into 4 Ohms both channels working
Frequency Response +/-1dB 12Hz-45kHz
Bandwidth 8Hz-86kHz
Signal to Noise >85dB
Gross Weight (packed) 11kgs
Dimensions 143 x 430 x 370mm (hwd)
