Key Features
- Matching TEAC H500-series component – Designed to sit neatly with TEAC’s compact half-width separates.
- DVD video playback – A useful period DVD player for a compact hi-fi or home-cinema setup.
- Analogue stereo output – Can be connected to a normal amplifier line input for CD/DVD stereo audio playback.
- 5.1-channel audio outputs – Rear-panel 5.1 outputs are listed in the service-manual control layout, useful for compatible surround systems.
- Optical and coaxial digital outputs – Allows connection to a compatible DAC, AV receiver or processor.
- Composite, S-Video and SCART outputs – Gives several video connection options, with SCART shown for the European version.
- Remote control included – Supplied with the remote control, making menu navigation and playback control easier.
- Tested by Andrew – Checked before sale and described honestly, including the cosmetic marks.
Design Highlights
The DV-H500 reflects TEAC’s compact-separates approach from the late 1990s and early 2000s: smaller than full-width hi-fi, but still built as a separate component rather than part of an all-in-one system. This makes it especially useful for completing a matching TEAC H500 stack.
Its connection options are broader than many simple DVD players. Alongside standard analogue stereo output, the DV-H500 provides digital audio outputs and multi-channel analogue connections, allowing it to be used either as a straightforward stereo disc player or as part of a compatible home-cinema system.
For buyers using older displays or AV equipment, the inclusion of composite, S-Video and European SCART outputs can be useful. For audio use, the optical and coaxial digital outputs also allow the player to feed an external DAC or digital input where required.
Technical Specifications
Sources: TEAC DV-H500 service manual / owner’s manual information.
Disc / Video
- Model: TEAC DV-H500
- Type: DVD video player
- Signal system: PAL for European version / NTSC for US and Canada versions
- Laser: Semiconductor laser
- Laser wavelength: 650nm
- Operating position: Horizontal
- Operating temperature range: 41°F to 95°F
Digital Audio Performance
- Frequency range: 2Hz–22kHz
- Signal-to-noise ratio: More than 105dB, EIAJ
- Dynamic range: More than 92dB, EIAJ
- Harmonic distortion: 0.008%
- Wow and flutter: Below measurable level, less than ±0.001% W. peak, EIAJ

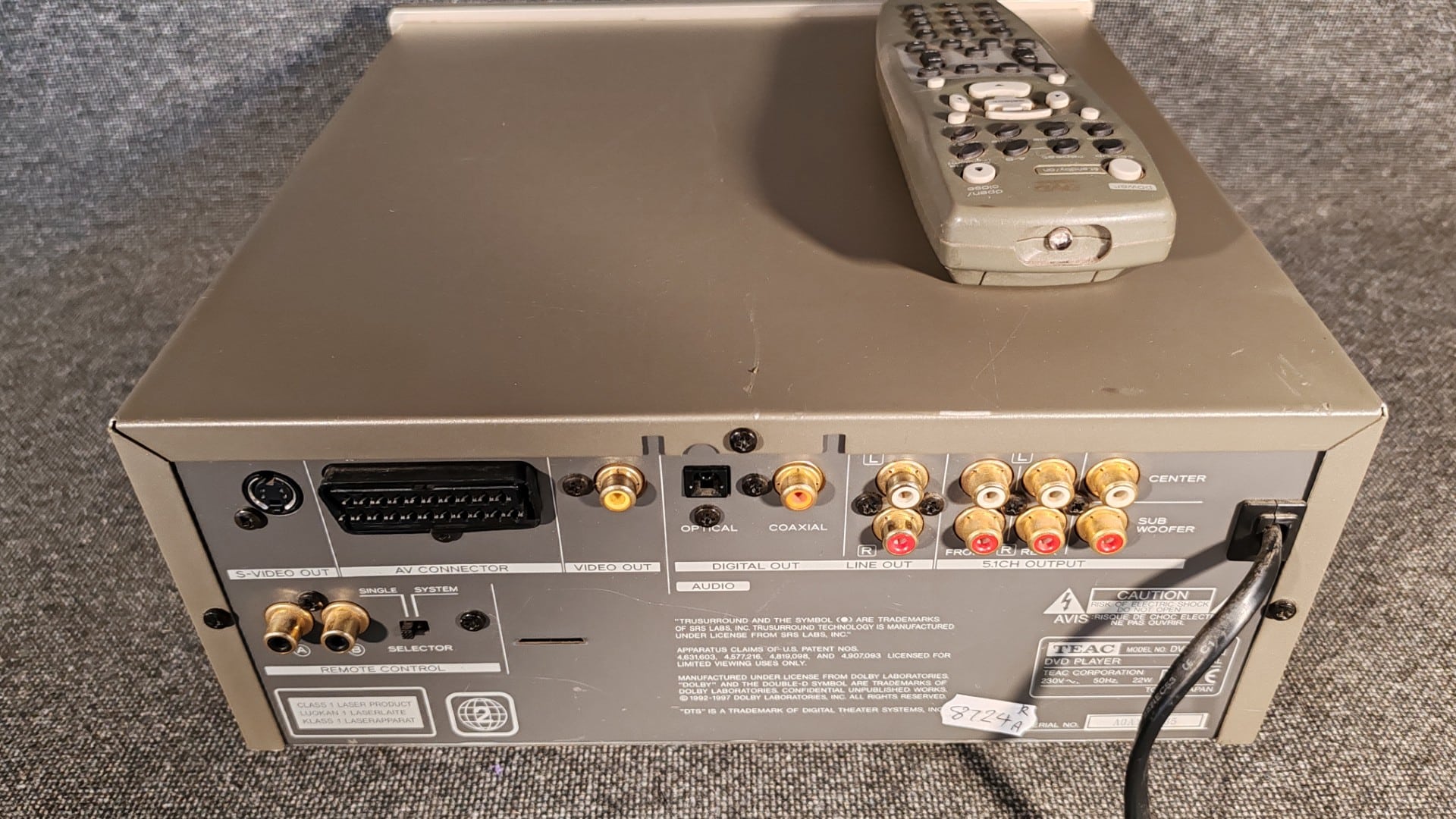

Outputs
- Analogue audio output: 2.0V RMS at 1kHz, 0dB
- Digital coaxial output: 0.5V p-p, 75 ohms
- Digital optical output: Listed in rear-panel layout
- Composite video output: 1.0V p-p, 75 ohms, RCA
- S-Video output: Y 1.0V p-p, 75 ohms; C 0.286V p-p, 75 ohms
- 5.1-channel analogue audio outputs: Listed in rear-panel layout
- SCART / AV connector: European version only
- Remote-control system jacks: Listed in rear-panel layout
Physical / Power
- Power supply: AC 230V, 50Hz for European version
- Power consumption: 22W
- Dimensions: 285 × 131 × 292mm
- Weight: 3.9kg
Why Buy From Us
With over 40 years of experience in the hi-fi trade, we understand the importance of accurate descriptions and proper testing of used audio equipment.
This TEAC DV-H500 has been tested by Andrew and is described honestly, including the cosmetic marks. The remote control is included.
Unlike buying through eBay or other unverified platforms, we provide clear descriptions, careful packing, a 3-month guarantee unless otherwise stated, and after-sales support by phone or email.
Summary
The TEAC DV-H500 is a useful compact DVD player and a good match for TEAC H500-series systems, offering DVD playback, stereo and multi-channel audio outputs, digital outputs and several video connection options. This example is in good condition with some cosmetic marks, includes the remote control, and has been tested by Andrew.
This listing is for a single TEAC DV-H500 DVD player with remote control.
Please feel free to get in touch with any questions prior to purchase.
